Steel Erection Is Where Planning Becomes Reality
All the careful drafting, fabrication and surface treatment comes down to one thing: the steel going up on site safely, on programme, in the right sequence, fitting exactly as designed. Cedar Steel coordinates every stage of structural steel installation and erection in Sydney, supplying structural steel beams and handling commercial steel construction across NSW. Steel erection on a commercial building site is not simply lifting pieces and bolting them together. It is a coordinated operation involving crane logistics, temporary works, connection sequencing, safety management and ongoing quality checks — all running simultaneously while the rest of the site continues to move around you.
Cedar Steel’s installation crews manage this coordination as part of every project. Understanding what the erection process looks like helps builders, project managers and engineers set realistic expectations and prepare their sites for a smooth install.
What Happens Before the Steel Arrives on Site?
The erection process begins well before the first truck arrives. A pre-installation survey confirms that the concrete footings, pads and embedded anchor bolts are in the right positions, at the right levels, and that the anchor bolt hole patterns match the base plate drawings. A single anchor bolt that is 20 mm off-plan can prevent a column from being installed correctly and requires engineering direction to resolve.
Cedar Steel’s installation coordinator reviews the survey results before mobilisation and raises any defects with the builder and engineer. This pre-check saves significant time on install day — problems identified before the crane arrives can be resolved without the clock running. Problems discovered after the crane is on site are expensive to work around.
How Is the Crane Configured for Steel Erection?
Crane selection and configuration depends on the weight and size of the heaviest lift on the job, the reach required to place that piece in position, and the site constraints affecting crane positioning. On commercial sites in Sydney’s inner suburbs and CBD, crane access is often constrained by site boundaries, neighbouring buildings, overhead power lines and street access restrictions.
Cedar Steel’s installation team coordinates crane hire and positioning as part of the erection planning. The crane radius and lift capacity are confirmed against the heaviest and most difficult lifts on the structural schedule before the crane is booked. Picking a crane that cannot safely reach the critical lift is a programme and cost problem that can only be solved by re-planning or re-craning — both of which are avoided with proper upfront planning.
What Is the Erection Sequence and Why Does It Matter?
The erection sequence — the order in which structural members are installed — is determined by the stability of the structure at each stage of construction. Steel frames need to be erected so that each completed sub-frame is stable before new elements are added. Columns are typically erected first, then primary beams, then secondary beams and bracing. Bracing is critical: an unbraced frame can be unstable in wind loading during construction, creating a safety hazard.
The structural engineer specifies any temporary bracing requirements for the construction sequence. Cedar Steel’s erection crew follows these requirements and maintains communication with the engineer on any sequence changes that arise from on-site conditions. On complex multi-storey commercial structures, the erection sequence is documented in a formal erection methodology that is reviewed and approved before work starts.
How Are Connections Made During Erection?

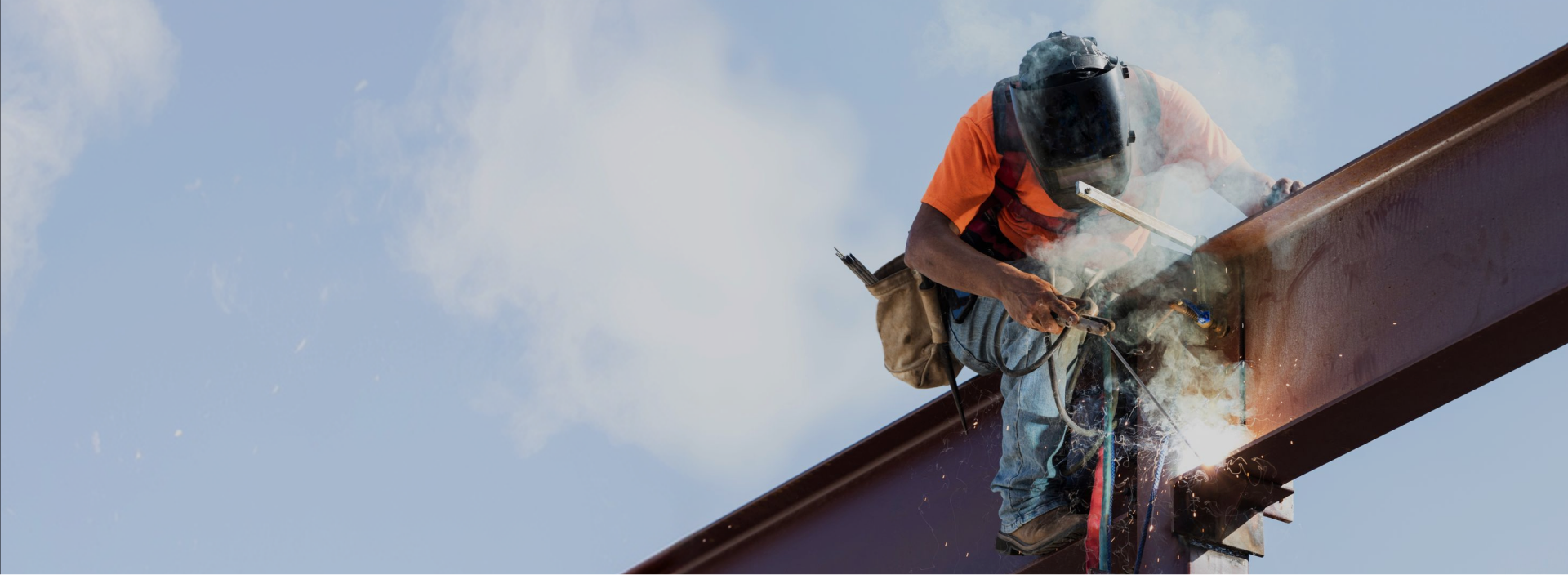

Structural connections are made in two stages. During initial erection, members are temporarily connected using minimum bolt quantities — enough to hold the piece in position and provide stability while the alignment of the frame is checked and adjusted. Once the frame is aligned, plumbed and levelled to the survey tolerances, the connections are fully bolted or welded to the final specification.
High-strength structural bolts used on commercial projects — typically grade 8.8 structural bolts — are tightened using calibrated torque equipment to the specified tension. Cedar Steel’s installation crews use calibrated equipment and maintain torque records on projects where this documentation is required by the specification.
What Safety Requirements Apply to Steel Erection in NSW?
Steel erection is classified as high-risk construction work under the NSW Work Health and Safety Regulation 2017. A Safe Work Method Statement (SWMS) must be prepared and followed before erection commences. The SWMS covers crane operations, working at height, connection work, temporary works stability and emergency procedures.
Cedar Steel’s installation crews hold current working at height training, Rigger and Dogger certifications, and White Cards. The SWMS for each project is prepared by the Cedar Steel installation coordinator and is available for the principal contractor to review before work commences. Safety is not a checkbox on Cedar Steel installations — it is embedded in the planning from the first programme meeting.
How Long Does a Typical Commercial Steel Erection Take?
The duration of steel erection depends on the volume of steel, the complexity of the frame, the number of levels, the crane configuration and access constraints, and the weather. A straightforward single-storey commercial fit-out frame might be erected in one to two days. A multi-storey commercial or residential frame with complex connections and multiple crane configurations can take several weeks of phased installation.
Cedar Steel provides a realistic erection duration estimate as part of the programme planning at the quoting stage. This estimate is based on the specific structural schedule, not on generic benchmarks that may not reflect your project’s actual complexity.
Book Cedar Steel for Your Sydney Commercial Erection
Cedar Steel’s installation crews work across the full Sydney metropolitan area and wider NSW, erecting commercial, industrial, residential and civil structural steel. Crane coordination, traffic management, SWMS preparation and safety management are all included in the installation service.
